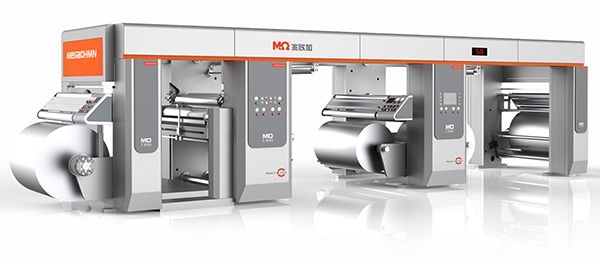

MEGAOHMN Solventless Laminator

Ideal for the production of flexible insulation laminates

MEGAOHMN, a game-changer in solventless lamination! Unlike the SINSTAR and SUPLOCK solventless laminators designed for flexible packaging films, the MEGAOHMN laminating machine is specially crafted for laminated materials like flexible multi-later insulating materials, including PET, PVC, PS, PP, and more. MEGAOHMN solventless laminator can be applied to top-notch insulation in the electrical, electronic, and various industrial sectors requiring flexible insulation laminates.

Breathable Film Solventless Lamination Machine
Request a Quote

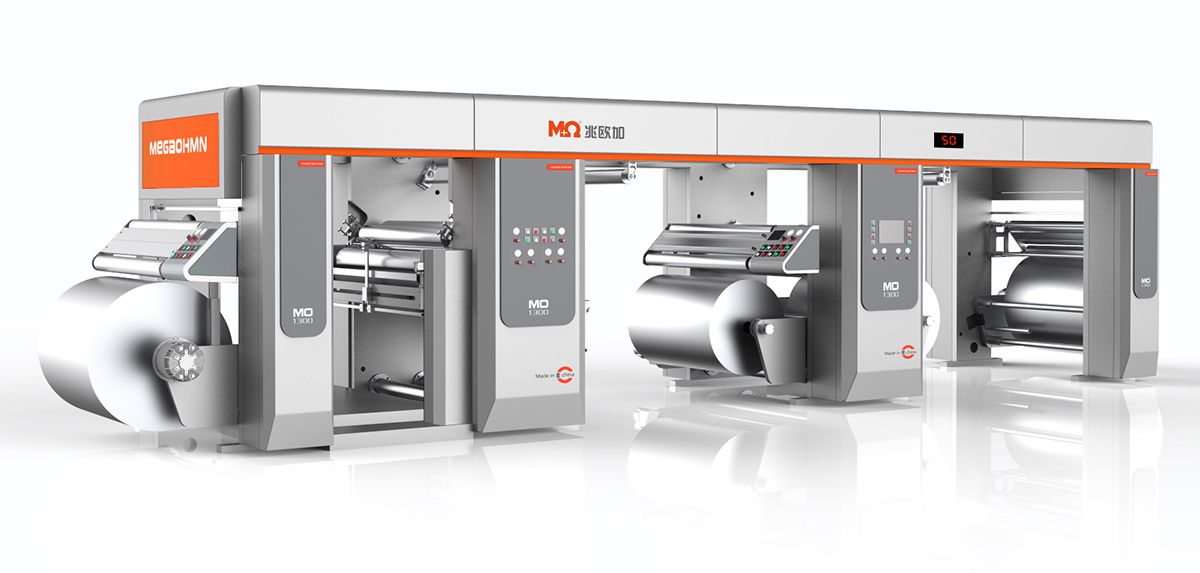

Flexible Insulation Material Solventless Laminator MO-1300A

Producing multi-layer flexible electrical laminates (200-1000μm in thickness), high tension design saves 40% of operating costs

  • Layer Number of Laminated Film: 3 layers
  • Max. Lamination Width: 1350mm
  • Max. Unwind Diameter: 800mm
  • Max. Rewind Diameter: 1000mm
  • Dimensions (L×W×H): 8500×6000×2000mm
  • Substrate Thickness Range: 200~1000μm
  • Typical Substrates: PET, PVC, PS, PP, etc.
Application

MEGAOHMN is primarily used for producing flexible insulation laminates for EMI shielding & insulation applications in the electrical, electronic, and other industrial sectors.

Applicable Structures

DMD, DM, NMN, NHN, AMA, AHA, NM, AM, HGH, etc.

  • DM = Polyester fiber nonwoven (D) + Polyester film (M)
  • DMD = Polyester fiber nonwoven (D) + Polyester film (M) + Polyester fiber nonwoven (D)
  • DMDM = Polyester fiber nonwoven (D) + Polyester film (M) + Polyester fiber nonwoven (D) + Polyester film (M)
  • Domestic NMN(AMA) is a flexible laminated material consisting of polyester film bonded with adhesive on both sides of aromatic polyester paper, forming a three-layer insulating paper. It uses imported Class H adhesive and combines excellent resistance to high temperatures of up to 220℃.
Features
  • Three-layer lamination
  • Double-side coating
  • Platform for material splicing
  • Clamp type loading and unloading
  • Synchronous laminating mechanism
  • Winding mode of thick substrate
FAQs

The solventless laminator can be used for overlay processing on substrate. It utilizes solventless lamination technology, being environmental-friendly.

This solventless laminator is mainly used in industries of flexible insulation laminates manufacturing, electrical insulation films manufacturing, industrial laminated sheet manufacturing, and more.

Our solventless laminator can process PET laminated film, PVC laminated film, PS laminated film, PP laminated film.

This laminating machine can process three-layer lamination applications.

This sheet laminating machine can laminate sheet materials with a thickness ranging from 200μm to 1000μm.

We have nearly 20 years of experience in the production of solventless laminating machinery.

We can offer customization services for solventless lamination equipment based on your specific requirements.
